Bitvisus 4K60 8 in 9 Out Video Wall Controller Rs232 HDMI/DP Network Web Control 2x2 Video Wall Matrix Controller Features
1,Support 8 inputs, including 4-channels 4K60 (2-channels HDM/DP option),4-channels 1080P60, support 9-channels 1080P60 output. Multi-input andmulti-output to meet a variety of application requirements;Support 1 channels HDMl local display back;
2,Support remote control, RS232, network WEB control, you can log in WEB forcontrol on Windows computer, Apple computer, Pad, mobile phone and otherdevices, easy and flexible to realize the control and selection of input and output ofthe device;
3,Support multi-screen display, you can combine a signal into one screen outputdisplay, you can also display different contents in multiple screens;
4,Support seamless switching of` input signals without black screen or flashingscreen.
5,Built-in output signal enhancement to ensure signal stability and clarity duringlong-distance transmission.
6,Adopt imported industrial-grade chip, 28nm process is stable and reliable, withgood heat dissipation design and protection measures to ensure stable operation fora long time.
2x2 3x2 Video Wall Matrix Controller 4K60 8 in 9 Out Video Wall Controller Rs232 HDMI/DP Network Web Control

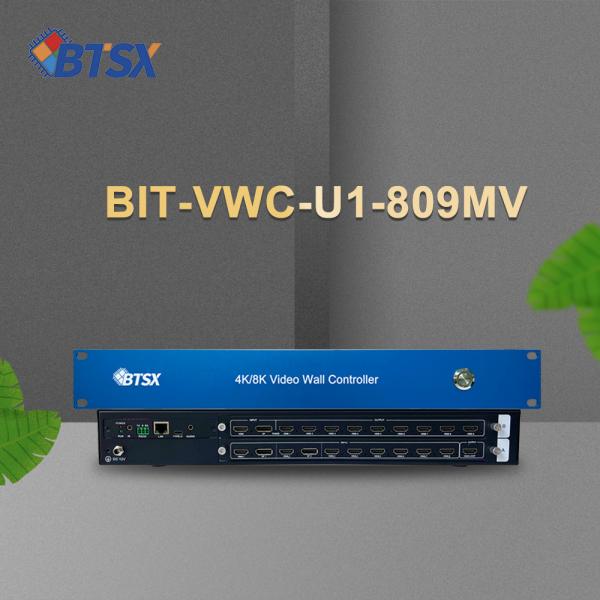

BIT-VWC-U1-809MV is a multi-channel video processor developed by Bitvisus, featuring 8 inputs & 9 outputs for flexible signal distribution. It enables large-screen splicing, multi-signal display, and seamless matrix switching, delivering efficient control and a smooth user experience. Ideal for video conferencing, classrooms, command centers, digital signage, and studios.
2x2 3x2 Video Wall Matrix Controller 4K60 8 in 9 Out Video Wall Controller Rs232 HDMI/DP Network Web ControlProduct Specifification
| Produduct Name | BIT-VWC-U1-809MV |
| Input Maximumum PixelClock Frequency | 600MHz |
| Input Interfaface | ININ1-2:2×HDMI 2.0,2×DP 1.2ININ3-4:2×HDMI 2.0ININ5-8:4×HDMI 1.3 |
| Input Resolution | ININ1-4:3840×2160P60ININ5-8:1920×1080P60 |
| Color depth | 8bit |
| Input color foformrmat | RGB444,YUV444,YUV422,YUV420 |
| Outptput Interfaface | 9×HDMI 1.3,1×HDMI 2.0 |
| Outptput Maximumum PixelClock Frequency | 154MHz |
| Outptput resolution | Remote control, RS232, Network rk interfaface Web |
| Audio | 3.5MM Audio Split |
| Power supupply | 12V5A |
